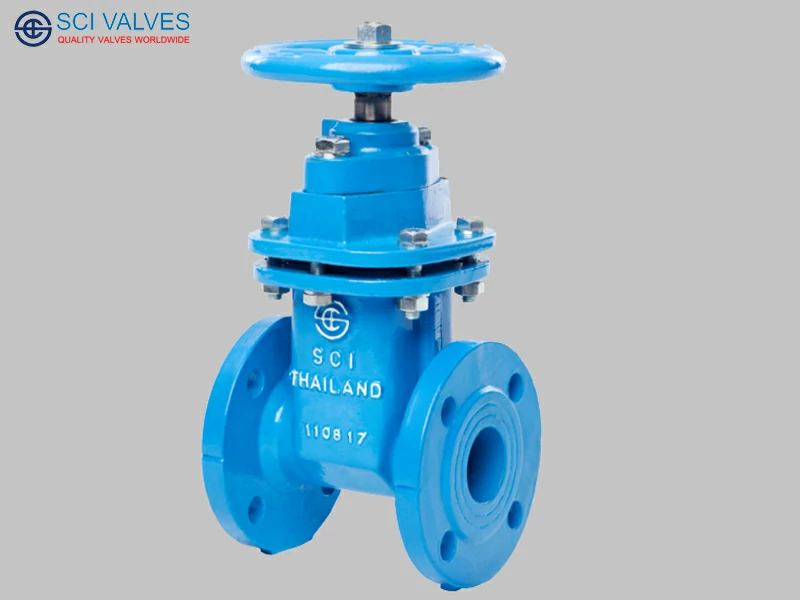

Gate Valve Non Rising Stem

      Gate Valve Non Rising Stem are manufactured and tested in accordance with BS 5150 PN10/16/25, BS EN 1171:2002, BS EN 1074-2, TIS 432 PN 6 / 10 / 16 and also meet the requirements of MSS-SP-70 class 125 / 250, Suitable for all types of water, air and steam.


  • IBBM (iron body and bronze mounted), stainless steel, and all iron trim are also available.
  • Valve ends can be flanged, screwed and spigot.
  • Flanged drilling to suit ANSI B16.1, ANSI B16.5, BS4504, BS10, BS EN 1092-2, BS 4772, AS2129, DIN, JIS and etc.
  • Various types of operators such as handwheel, operating nut or cap, chainwheel, spur gear, bevel gear, pneumatic, hydraulic and electric actuator can be provided upon requested.
  • Special accessories like by-pass unit, valve locking device, tapped bosses, indicator and limit switches are also available.
